Kipas yang digerakkan oleh air dan udara, menggunakan fitur desain unik yang dianggap sebagai standar industri Minyak & Gas,
Product, Chemical,Handysize, SR, LPG dam Lainnya.

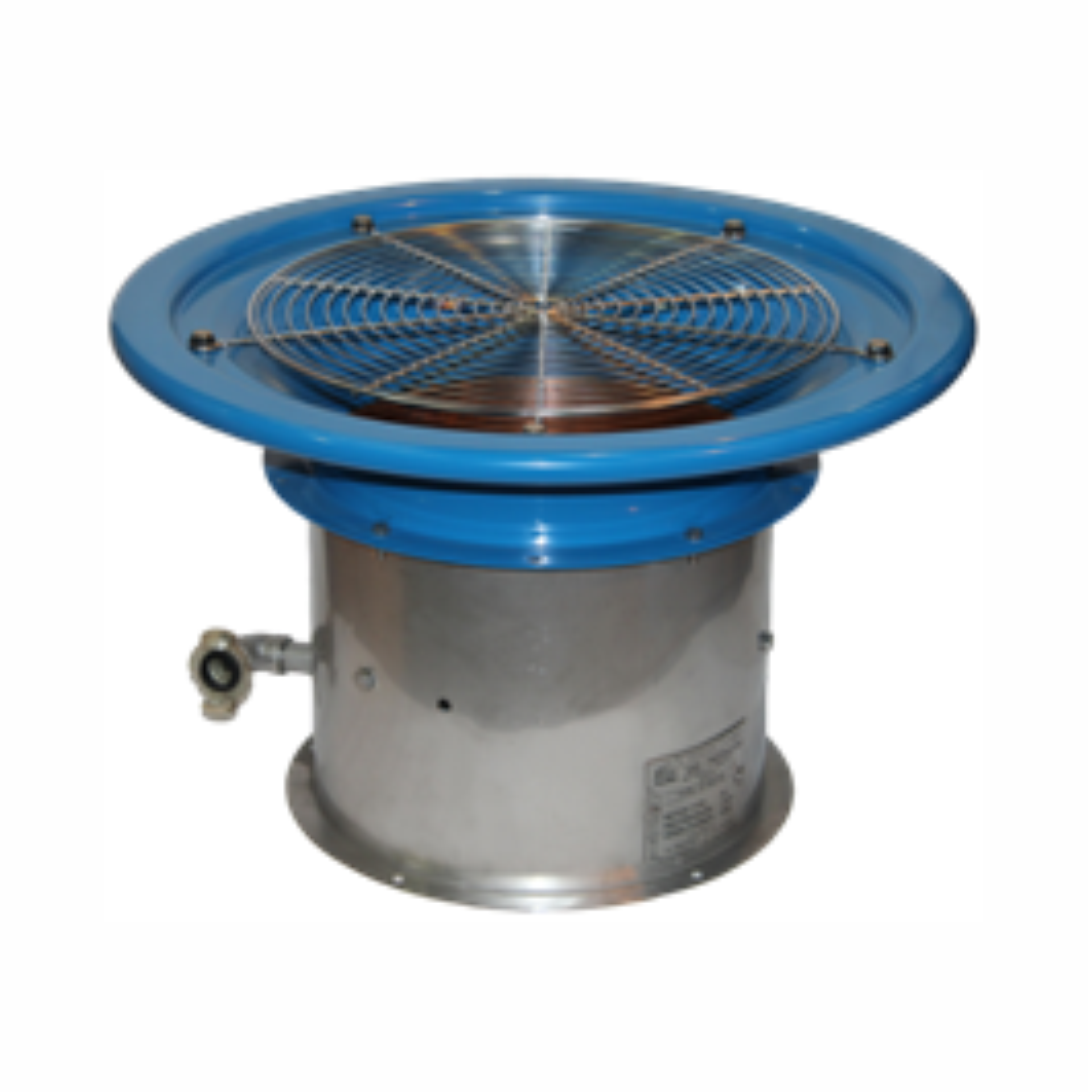

| Type | : | VP 950 A-Mk5 | ||
| Max Air Flow | : | 8500 m3/hr - 5120 cu.ft/min | ||
| Drive Media Flow | : | 220 m3/hr | ||
| Min. Supply Hose | : | 3/4 Inc | ||
| Standard Deck Flange | : | ID 318 | ||
| Gross Weight | : | 27 Kg | ||
| Casing | : | Stainless Steel AISI 316L | ||
| Impeller | : | Alumunium Alloy | ||
| Impeller Anti Spark Track | : | Berrylium Copper | ||

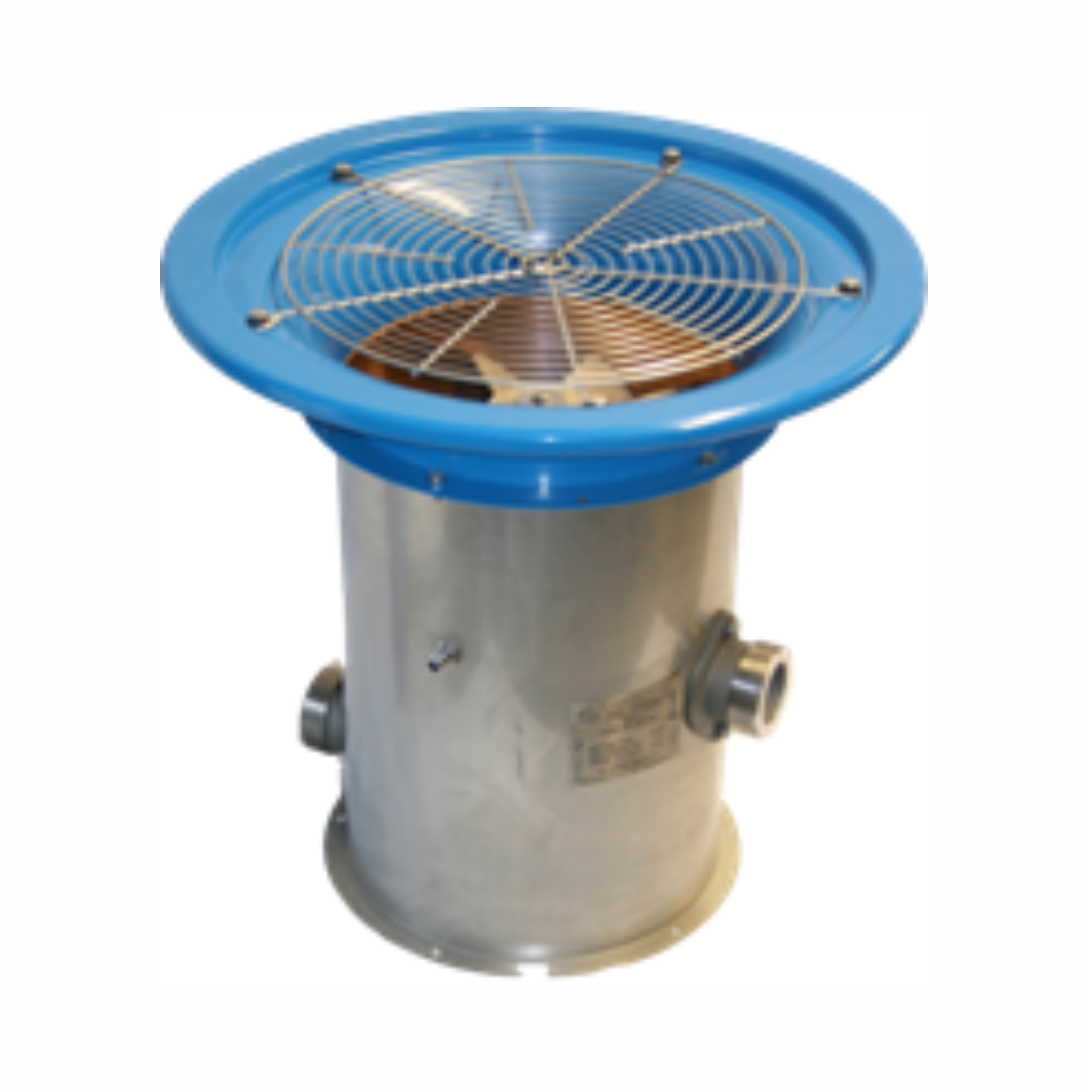

| Type | : | VP 1500 WS | ||
| Max Air Flow | : | 8700 m3/hr - 5120 cu.ft/min | ||
| Air Velocity | : | 3,2 m/s @ 25 mtr below deck | ||
| : | 10,5 ft/s @ 82 ft below deck | |||
| Max | : | 280 Pa | ||
| : | 1,5 ins/swg | |||
| Air Flow Requirment | : | 182-220 m3/hr - 108-128 cu.ft/min | ||
| Max | : | 75 kg/cm2 (110 psi) | ||
| Optimum | : | 5-7,5 kg/cm2 (70-110 ppsi) | ||
| Impeller | : | Alumunium Alloy, Nickel Coated | ||
| Fastenings | : | AISI 304 & 316 St/St | ||
| Connections | : | Plated Malleable Iron | ||
