Alat Gas Detektor adalah alat yang dapat digunakan untuk mendeteksi atau mengetahui keberadaan gas pada suatu tempat atau ruangan.
Pada umumnya alat ini banyak digunakan pada bidang atau industri yang berhubungan dengan tempat yang rawan
terjadi kebocoran gas seperti pabrik, lokasi pertambangan, kilang minyak.

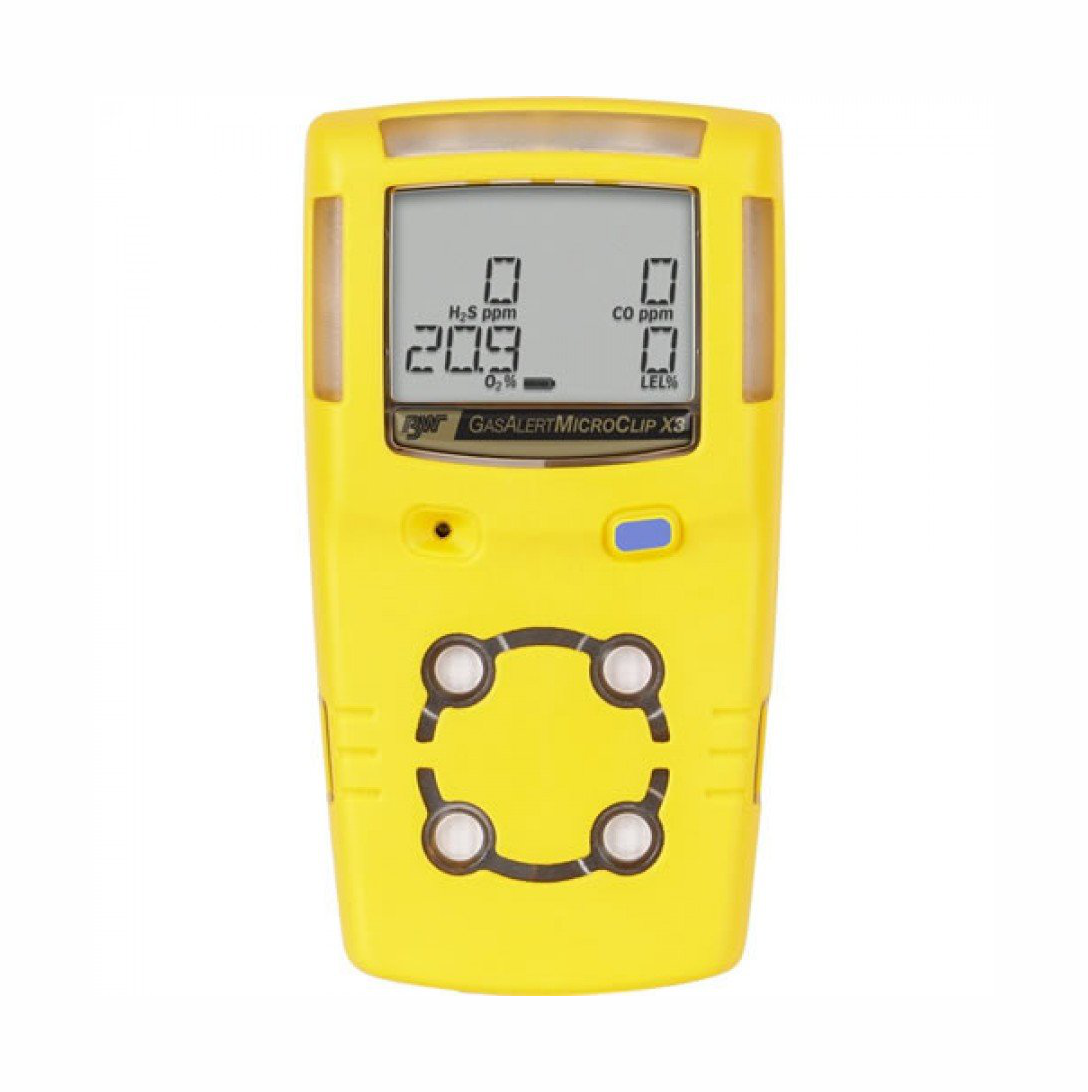

| Type / Model | : | MC2 – XWHM – Y OE |
| Size | : | 4.4 x 2.4 x 1.1 in. / 11.3 x 6.0 x 2.9 cm |
| Weight | : | 6 oz. / 171 g |
| Temperature | : | -4 to +122°F / -20 to +50°C |
| Humidity | : | 0% - 95% RH (non-condensing) |
| Alarms | : | - Visual, vibrating, audible (95 dB)
- Low, High, STEL, TWA, OL (over limit) |
| Tets | : | Audible/visual alarms on activation, sensors, battery and circuitry (continuous) |
| Pump | : | Compatible with the Sampler motorized sampling pump |
| Typical Battery Life | : | 10 hours (typical); recharges in less than 4 hours |
| User Option | : | Confidence beep
Combustible gas measurement Set STEL interval Measurement (% LEL or % by volume methane) |

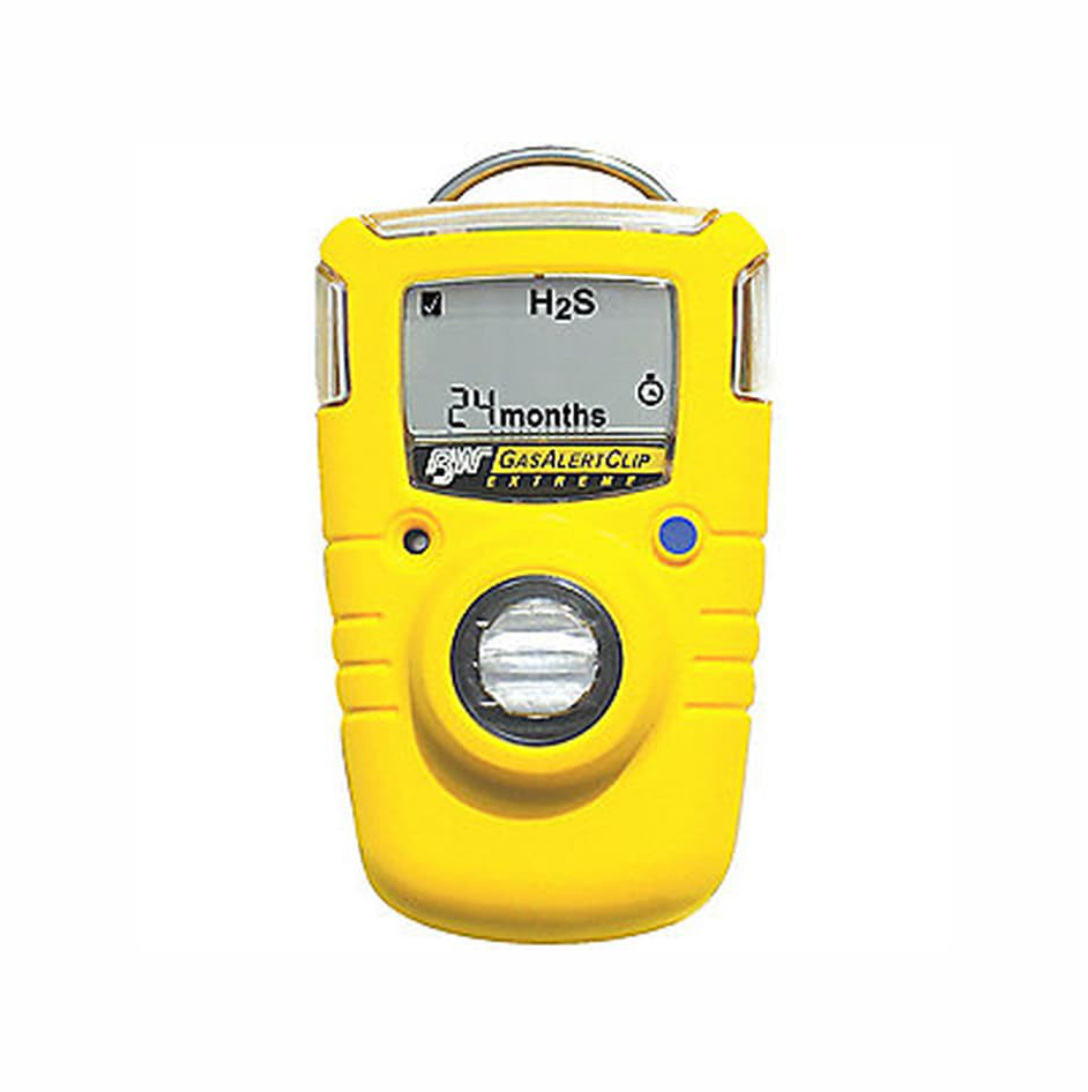

| Type / Model | : | GA24XT-H |
| Size | : | 1.1 x 2.0 x 3.2 in. / 2.8 x 5.0 x 8.1 cm |
| Weight | : | 2.7 oz. / 76 g |
| Typical Battery Life | : | Two years (H2S, CO, SO2 or O2) or three years (H2S or CO) |
| Certifications | : | h Class I, Div. 1, Gr. A, B, C, D American Bureau of Shipping |
| Approval | ||
| ATEX | : | X g II 1 G |
| Ex | : | ia IIC T4 |
| IECEx | : | Ex ia IIC T4 |
| INMETRO | : | BR-Ex ia IIC T4 |
| X | : | European Conformity |
| Warranty | : | 2 or 3 years from activation (given normal operation), plus 1 year shelf life |

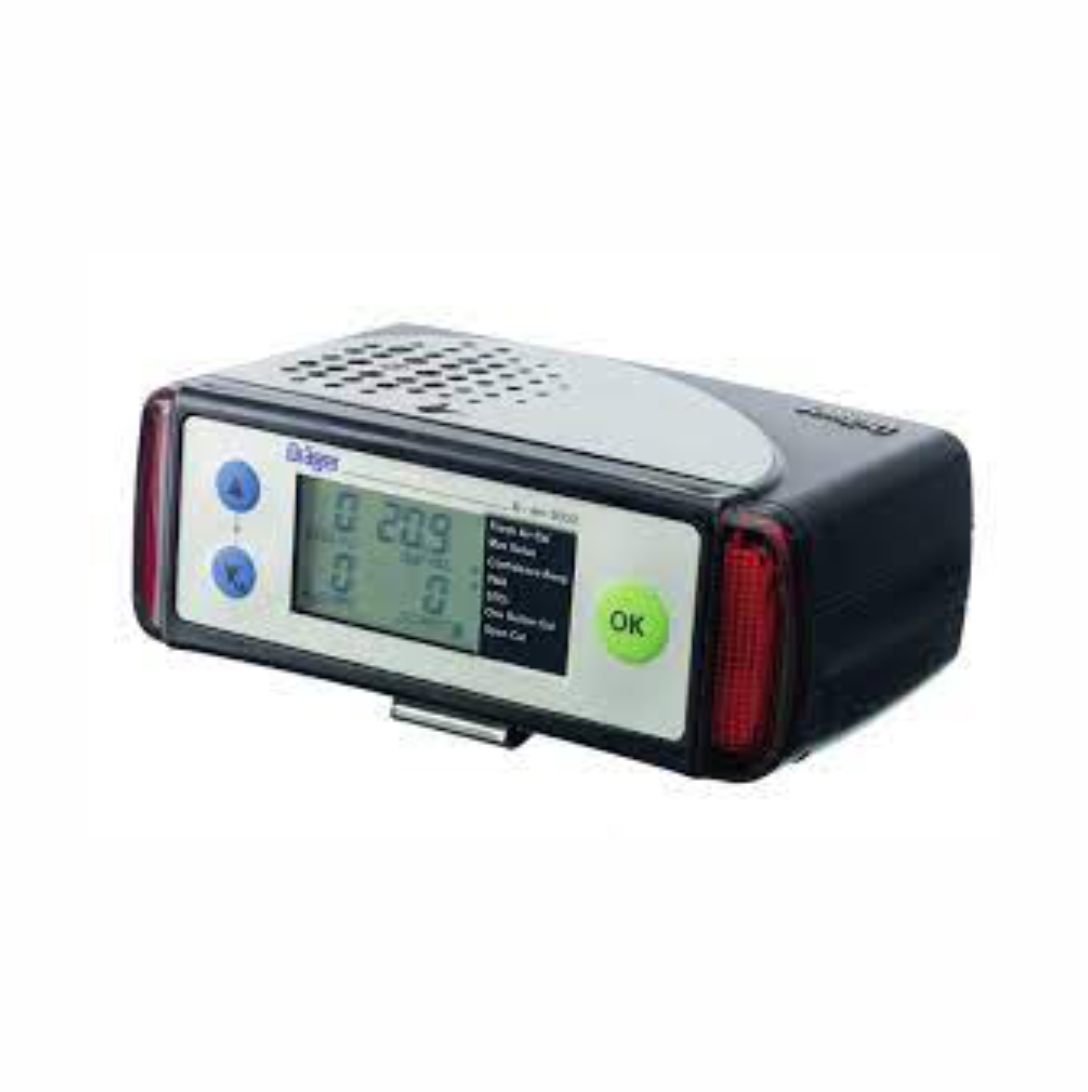

| Type / Model | : | X-am 3000 |
| Size (h x w x d, approx) | : | 90 x 140 x 55 mm, 3.5‘‘ x 5.5‘‘ x 2.2‘‘ |
| Weight (approx) | : | 550 g, 20 oz |
| Ambient Conditions | ||
| Temperature | : | - 20 to + 55 °C; - 5 to + 130 °F short term - 40 to + 55 °C; - 40 to + 130 °F |
| Pressure | : | 700 to 1300 hPa, 20.7 to 38.4 inch Hg |
| Humidity | : | 10 to 95 %RH |
| Enclosure Rating | : | IP 65 |
| Typichal Battery Life | ||
| Alkaline | : | > 24 hours (diffusion mode) > 12 hours (pump mode) |
| NiMH | : | > 18 hours (diffusion mode) > 12 hours (pump mode) |
| Audible Alarm | : | > 90 dB (A) at a distance of 30 cm; 1 ft. |
| Charging Time | : | < 4 hours |
| Pump Mode | : | maximum length of tubing 20 m |
| Approval | ||
| ATEX | : | II 2G EEx ia d IIC T4; - 25 ≤ Ta ≤ + 55 °C (rechargeable) - 25 ≤ Ta ≤ + 50 °C (Alcaline) I M2 EEx ia d l |
| UL | : | Class I, Div 1, Group A, B, C, D; Temp Code T4 |
| CSA | : | Class I, Div 1, Group A, B, C, D; Temp Code T4 |
| IECEx | : | Ex ia d I/IIC T4; - 25 ≤ Ta ≤ + 55 °C (rechargeable) - 25 ≤ Ta ≤ + 50 °C (Alcaline) |
| CE-mark | : | electromagnetic compatibility (directive 89/336/EEC) |
